Electrosurgical Unit: What Is It, Types & Uses

You might not notice it right away, but in almost every modern surgery, there’s a quiet tool doing some of the heaviest lifting; not a scalpel, not a clamp, but electricity. Controlled, precise, and incredibly efficient.

That’s the electrosurgical unit.

In today’s operating rooms, where every second and every drop of blood counts, electrosurgical units help surgeons cut, coagulate, and control bleeding with remarkable accuracy. They’ve become a staple in everything from general surgery to ENT to minimally invasive procedures. Without them, operations would be slower, messier, and quite frankly,  riskier.

What Is an Electrosurgical Unit?

An electrosurgical unit (ESU) is a medical device that uses high-frequency electrical current to cut tissue, control bleeding, or coagulate during surgical procedures.

It may sound complex, but the principle is simple: electricity creates heat. When controlled properly, this heat can cut through tissue or seal blood vessels, without the need for traditional scalpels or clamps. Surgeons use ESUs to perform clean, precise work while minimizing blood loss.

How Does an Electrosurgical Unit Work?

At the heart of every electrosurgical unit (ESU) is a carefully controlled electrical circuit. It’s made up of three main parts: the generator, the active electrode, and the return electrode. Each plays a critical role in delivering energy safely and effectively during surgery.

The generator is where everything starts. It produces a high-frequency alternating current, typically in the range of hundreds of kilohertz to several megahertz. This frequency is well above what the human body would normally respond to with muscle contractions or nerve stimulation, making it safe for surgical use.

That current is delivered through the active electrode, which is usually a handheld instrument, a pencil-like device with a button or foot switch. When the surgeon activates it, the tip applies electrical energy directly to the tissue.

As the current passes through the tissue, resistance creates heat. Depending on the settings, this heat can cut through tissue cleanly or cause it to coagulate and stop bleeding. It’s a balance between power, time, and contact, too much can char the tissue, too little may be ineffective.

There are two main types of electrosurgery: monopolar and bipolar. In monopolar mode, the current travels from the active electrode, through the patient’s body, and exits via a return pad (or dispersive electrode) attached to another part of the body. In bipolar mode, both the active and return electrodes are part of the same instrument, like a pair of forceps, and the current only passes between the two tips.

Modern ESUs offer precise control over power levels, waveform shapes, and modes of operation. Many also include safety features like return electrode monitoring to detect poor contact, which helps reduce the risk of burns and other complications.

Types of Electrosurgical Units & Components

There are several types of electrosurgical units and a wide range of tools and accessories that work with them. Each plays a specific role depending on the procedure.

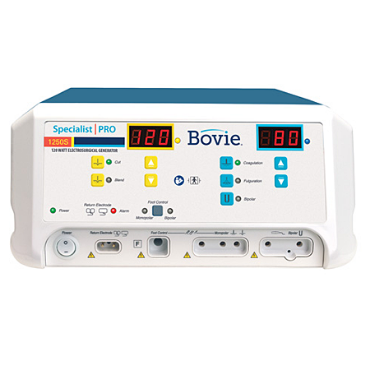

Electrosurgical Generators

These are the main units that produce the electrical current. Most generators support both monopolar and bipolar modes and offer various power settings, waveforms, and safety features.

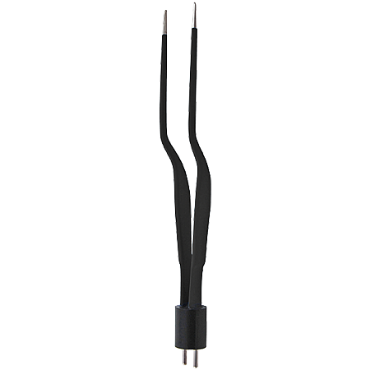

Non-Stick Electrosurgical Forceps

Designed with coatings that prevent tissue from sticking, these are commonly used in delicate procedures where precision is key.

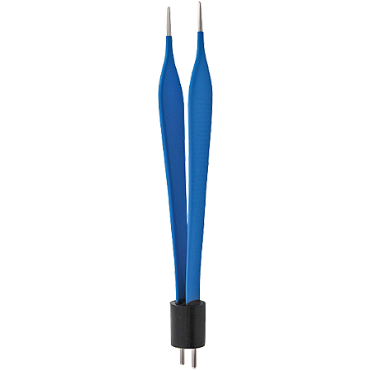

Standard Electrosurgical Forceps

These forceps are used to hold and coagulate tissue. While effective, they may stick more than coated versions during use.

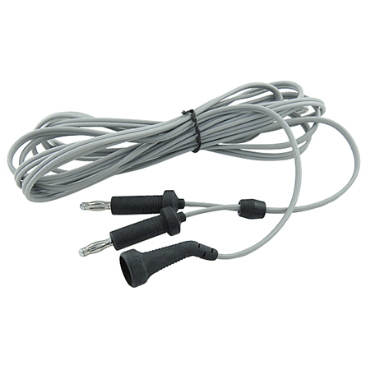

Electrosurgical Cables

These connect the electrodes and accessories to the generator. High-quality cables are essential for safe and reliable power delivery.

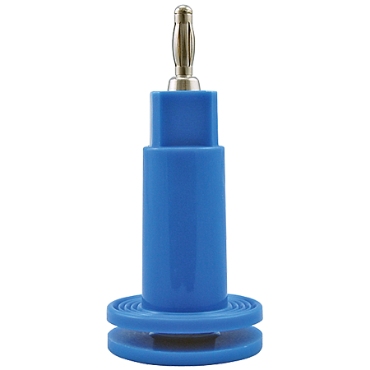

Electrosurgical Adapters

Adapters allow compatibility between different instruments and machines. They ensure flexibility in the operating room.

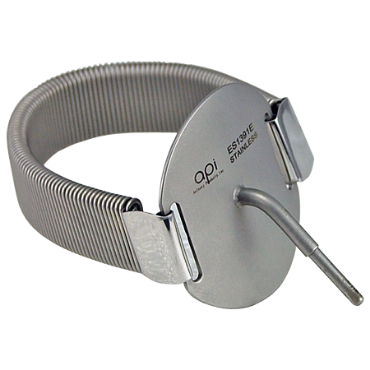

Grounding Equipment

Also known as return electrodes or dispersive pads, these are crucial in monopolar electrosurgery. They safely return the current to the generator, preventing patient burns.

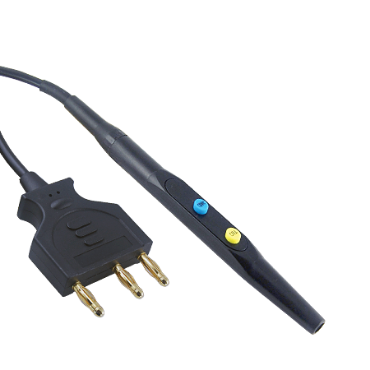

Electrosurgery Pencils

These handheld tools are used for cutting or coagulating. They typically feature control buttons and interchangeable electrode tips.

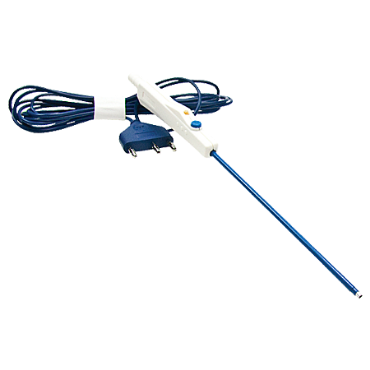

Suction Coagulation Devices

These tools combine suction with coagulation. They’re helpful in procedures where both fluid removal and bleeding control are needed at the same time.

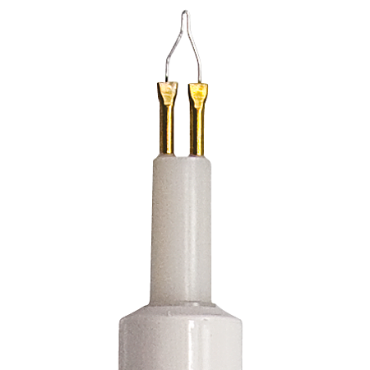

Cautery Products

While technically different from electrosurgery, cautery tools use heat to stop bleeding or destroy tissue. They’re often used when electrical current isn't ideal, such as with patients who have pacemakers.

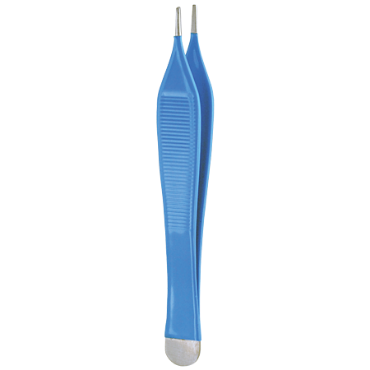

Coated Electrosurgical Instruments

These tools are coated to reduce sticking and improve visibility. They're especially useful in long procedures or where precision is critical.

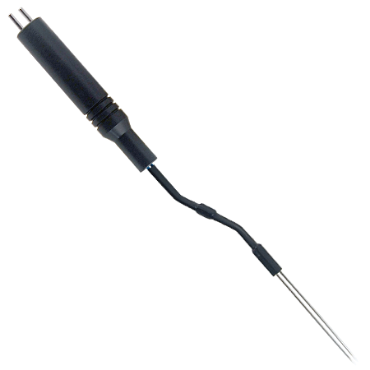

Bipolar Turbinate Probes

Commonly used in ENT surgeries, particularly in the nasal passages, these probes are designed for targeted bipolar coagulation.

Nose Bleed Sets

These kits include bipolar probes and suction tools to manage severe nasal bleeding efficiently and safely.

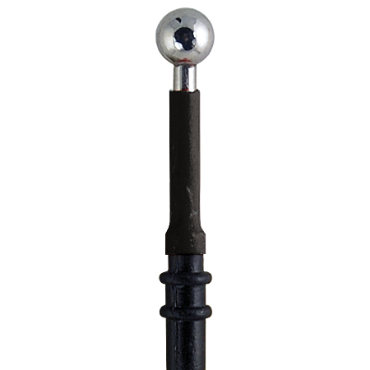

Electrodes

Available in various shapes — needle, ball, loop, spatula — electrodes determine how the current interacts with tissue. Each shape is designed for a specific effect, such as cutting or coagulating.

Benefits of Electrosurgical Units

Electrosurgical units have become essential in modern operating rooms for good reason. They offer a combination of speed, precision, and safety that traditional surgical tools can’t always match.

One of the most important benefits is reduced blood loss. As the ESU cuts through tissue, it can simultaneously seal small blood vessels. This not only keeps the surgical field clearer but also reduces the need for additional tools to stop bleeding, which can save valuable time.

Precision is another key advantage. Surgeons can control exactly where the energy is applied and adjust the settings based on the tissue type or desired effect, whether it’s a clean cut or a deep coagulation. This level of control helps avoid unnecessary damage to surrounding structures.

Procedures also tend to be faster. Since electrosurgical tools can cut and coagulate at the same time, there’s less need to switch between instruments. That can shorten operating time, which benefits both surgical teams and patients.

When used properly, ESUs also cause less trauma to surrounding tissue, especially compared to older methods that rely on mechanical pressure or heat alone.

The technology is highly adaptable, working well across a wide range of surgeries, from open abdominal procedures to fine, delicate microsurgeries in ENT or neurosurgery.

Lastly, today’s electrosurgical units are built with advanced safety features. Many include automatic shutdowns, contact monitoring, and alerts that help reduce the risk of burns or electrical injury, making them not just effective, but safer, too.

Choosing the Right Electrosurgical Equipment

Selecting the right electrosurgical unit (ESU) is about more than just buying a piece of equipment, it’s about making sure the tool fits your team’s needs, supports your workflow, and keeps patients safe.

• Start by looking at the power and control options. A good ESU should allow precise adjustments for both cutting and coagulation. The ability to fine-tune settings ensures better results across different tissue types and surgical situations.

• You’ll also want a unit with both monopolar and bipolar capabilities. This gives your team flexibility for a wider range of procedures, from general surgery to more delicate interventions.

• Return pad monitoring is a must-have safety feature. It ensures the grounding pad has proper contact with the patient and reduces the risk of burns due to poor electrode placement.

• Check for instrument compatibility as well. Your ESU should work with a variety of accessories, electrodes, and specialty tools, especially if your team handles diverse procedures.

• Ease of use is another important factor. Look for intuitive controls and clear displays that reduce the learning curve and limit errors during surgery.

• Don’t overlook built-in safety features like alarms, auto-shutoff, or impedance monitoring. These small details can make a big difference in day-to-day performance and patient outcomes.

• Finally, consider long-term reliability. Think about service contracts, the availability of replacement parts, and the overall cost of ownership, including consumables.

No single unit suits every situation. Choose the one that fits your surgical needs, your team’s workflow, and your facility’s standards.

Wrapping Up

The electrosurgical unit has become an essential tool in modern surgery. It uses controlled electrical energy to cut tissue and stop bleeding more efficiently than traditional tools. Surgeons benefit from increased precision, reduced bleeding, and faster procedures, while patients often experience better outcomes.

From generators and forceps to electrodes and suction devices, each part of the ESU system plays a role in improving surgical care. Choosing the right equipment means considering safety, compatibility, and performance.

In short, the electrosurgical unit is a quiet but powerful force behind many successful surgeries today.

Frequently Asked Questions (FAQ)

What does an electrosurgical unit do?
It delivers high-frequency electrical current to cut tissue, stop bleeding, and control surgical sites during procedures.

What are the main types of ESUs?
There are two main types: monopolar, where current travels through the patient to a return pad, and bipolar, where the current is confined between two points at the surgical site. Both have specific uses.

What are the risks of electrosurgery?
Risks include burns from poor return pad contact, unintended thermal damage to nearby tissue, and possible interference with medical implants. These risks are greatly reduced when proper procedures and modern safety features are used.
